Item Code: R6-98WS
Height x Width | Bars | BTU | Pipe Centre | Projection |
600 x 600mm | 8+8 | 2020 | 680 | 81mm |
600 x 836mm | 11+11 | 3136 | 910 | 81mm |

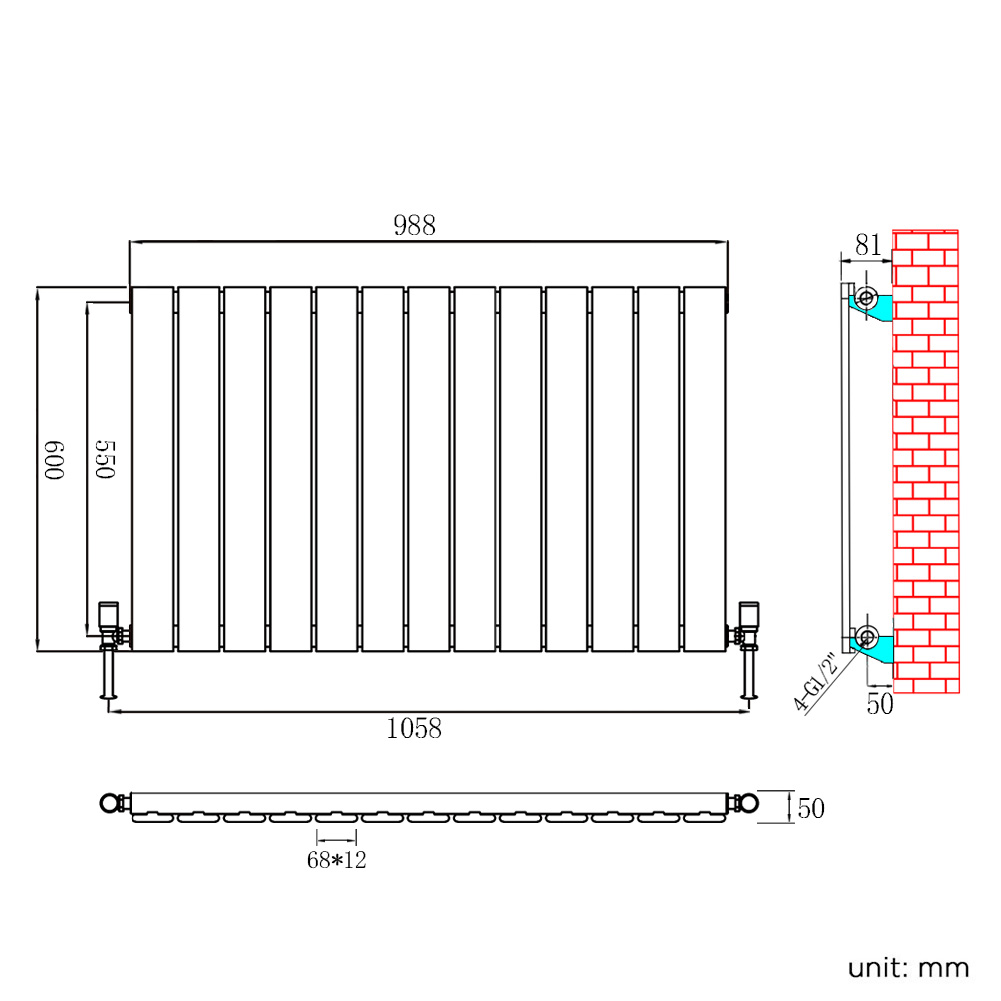

600 x 988mm | 13+13 | 3850 | 1058 | 81mm |
600 x 1216mm | 16+16 | 4836 | 1300 | 81mm |
600 x 1360mm | 18+18 | 5420 | 1450 | 81mm |
600 x 1596mm | 21+21 | 7372 | 1666 | 81mm |
Feature:
Have a high quality, triple layer powder coat finish
Premium Mild Steel
Excellent Heat Dissipation
Safety tested at 10 bar of pressure
Salt spray tested to minimum of 200 hours
Non-leakage, non-rupture, non-toxic and non-pollution.
The water inlet/outlet size of radiators is G1/2"
Brackets And Fixings Included
Height x Width | Bars | BTU | Pipe Centre | Projection |
600 x 600mm | 8+8 | 2020 | 680 | 81mm |
600 x 836mm | 11+11 | 3136 | 910 | 81mm |
600 x 988mm | 13+13 | 3850 | 1058 | 81mm |
600 x 1216mm | 16+16 | 4836 | 1300 | 81mm |
600 x 1360mm | 18+18 | 5420 | 1450 | 81mm |
600 x 1596mm | 21+21 | 7372 | 1666 | 81mm |
