Item Code: R2-18
Height x Width | Bars | BTU | Pipe Centre | projection |
600 x 500mm | 7 | 848 | 450 | 126mm |
600 x 600mm | 7 | 979 | 550 | 126mm |
800 x 400mm | 8 | 854 | 350 | 126mm |
800 x 500mm | 8 | 1003 | 450 | 126mm |
800 x 600mm | 8 | 1273 | 550 | 126mm |
1000 x 400mm | 10 | 1067 | 350 | 126mm |
1000 x 500mm | 10 | 1254 | 450 | 126mm |
1200 x 400mm | 12 | 1280 | 350 | 126mm |
1200 x 500mm | 12 | 1505 | 450 | 126mm |
1600 x 400mm | 16 | 1707 | 350 | 126mm |
1600 x 600mm | 16 | 2530 | 550 | 126mm |
Feature: Have a high quality, triple layer powder coat finish
Premium Mild Steel and Excellent Heat Dissipation
Safety tested at 10 bar of pressure
Salt spray tested to minimum of 200 hours
Non-leakage, non-rupture, non-toxic and non-pollution.

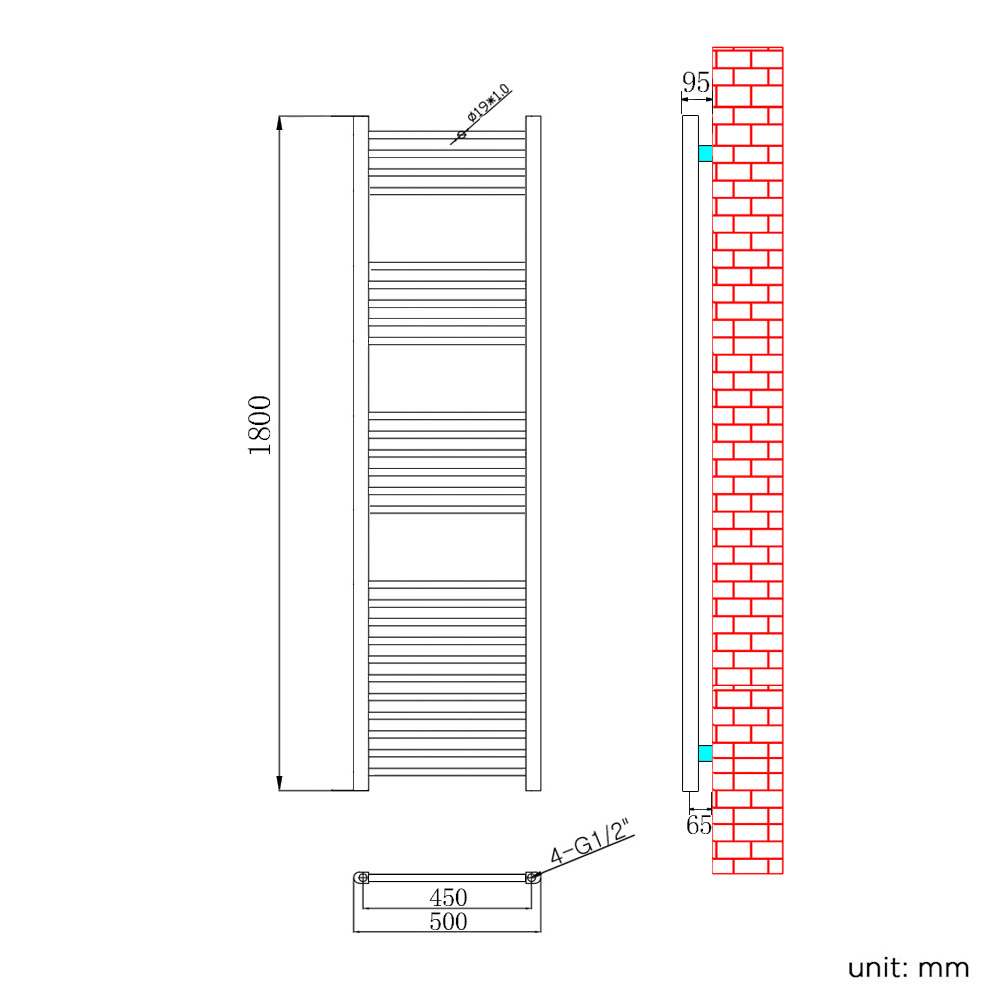

The water inlet/outlet size of radiators is G1/2"
Brackets And Fixings Included
Height x Width | Bars | BTU | Pipe Centre | projection |
600 x 500mm | 7 | 848 | 450 | 126mm |
600 x 600mm | 7 | 979 | 550 | 126mm |
800 x 400mm | 8 | 854 | 350 | 126mm |
800 x 500mm | 8 | 1003 | 450 | 126mm |
800 x 600mm | 8 | 1273 | 550 | 126mm |
1000 x 400mm | 10 | 1067 | 350 | 126mm |
1000 x 500mm | 10 | 1254 | 450 | 126mm |
1200 x 400mm | 12 | 1280 | 350 | 126mm |
1200 x 500mm | 12 | 1505 | 450 | 126mm |
1600 x 400mm | 16 | 1707 | 350 | 126mm |
1600 x 600mm | 16 | 2530 | 550 | 126mm |
