Item Code:R5-45W
Height x Width | Bars | BTU | Pipe Centre | Projection |
600 x 600mm | 8+8 | 2020 | 680 | 90mm |
600 x 836mm | 11+11 | 3136 | 910 | 90mm |
600 x 988mm | 13+13 | 3850 | 1070 | 90mm |
600 x1216mm | 16+16 | 4836 | 1300 | 90mm |
600 x 1360mm | 18+18 | 5420 | 1450 | 90mm |
600 x 1596mm | 21+21 | 7372 | 1666 | 90mm |
Feature:
Minimalist flat panel style radiator
High heat output
Durable high quality finish
Manufactured in accordance with BS EN 442
Pressure tested to 10bar / maximum working pressure 7bar
Connects to your central heating system

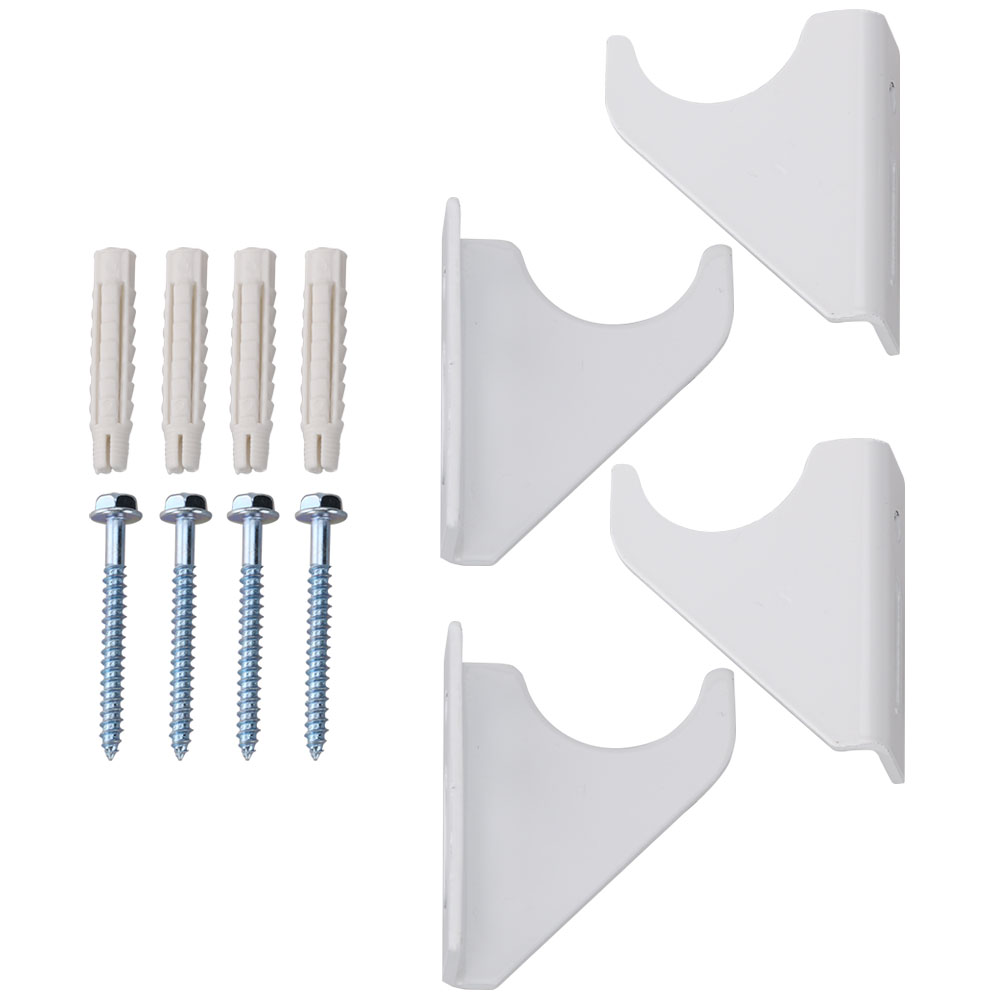

Fixing pack included complete with plugs and vents
Range of standard valves available separately

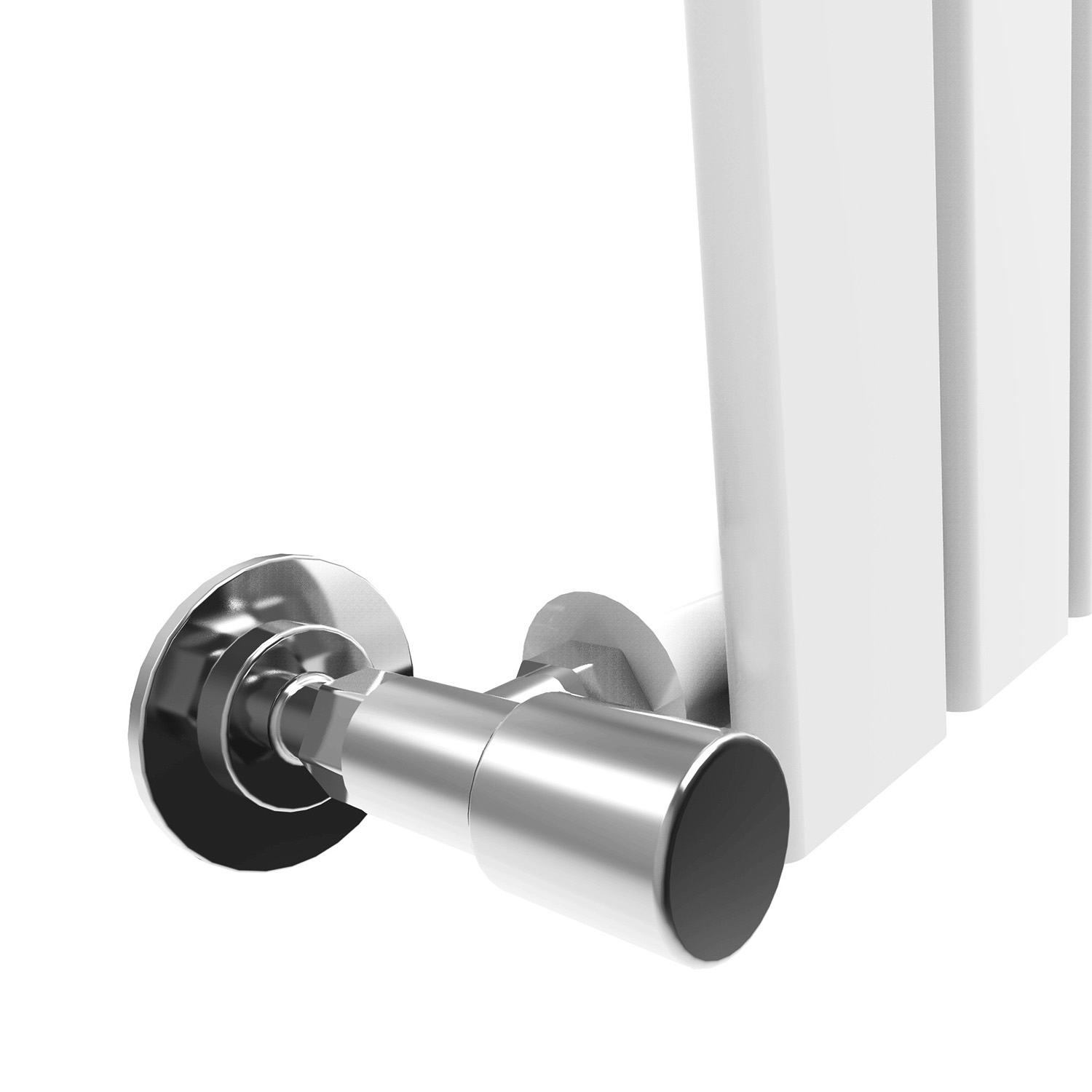

Height x Width | Bars | BTU | Pipe Centre | Projection |
600 x 600mm | 8+8 | 2020 | 680 | 90mm |
600 x 836mm | 11+11 | 3136 | 910 | 90mm |
600 x 988mm | 13+13 | 3850 | 1070 | 90mm |
600 x1216mm | 16+16 | 4836 | 1300 | 90mm |
600 x 1360mm | 18+18 | 5420 | 1450 | 90mm |
600 x 1596mm | 21+21 | 7372 | 1666 | 90mm |
